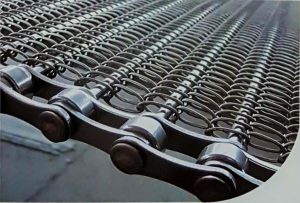

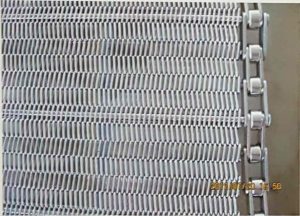

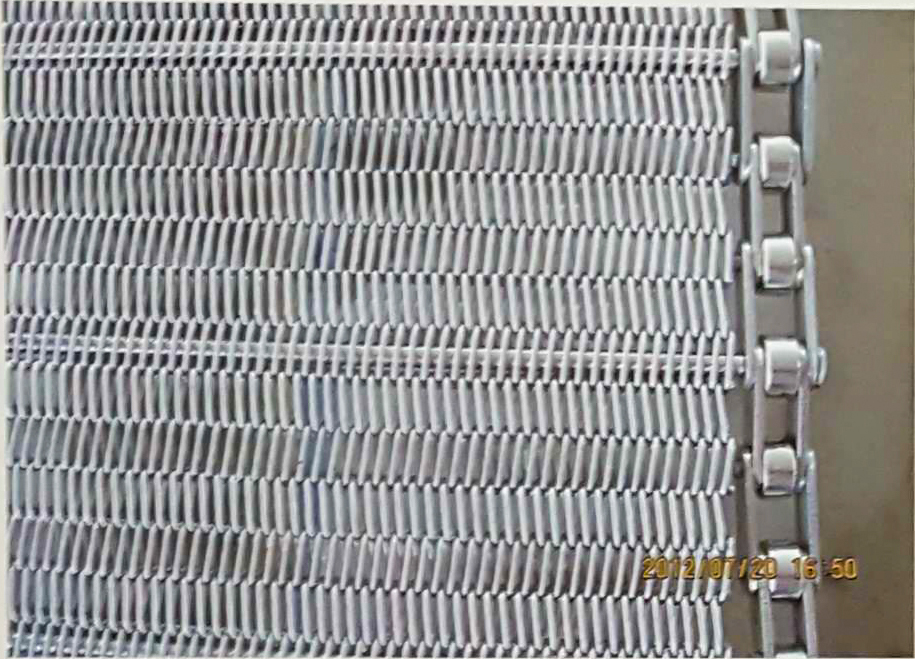

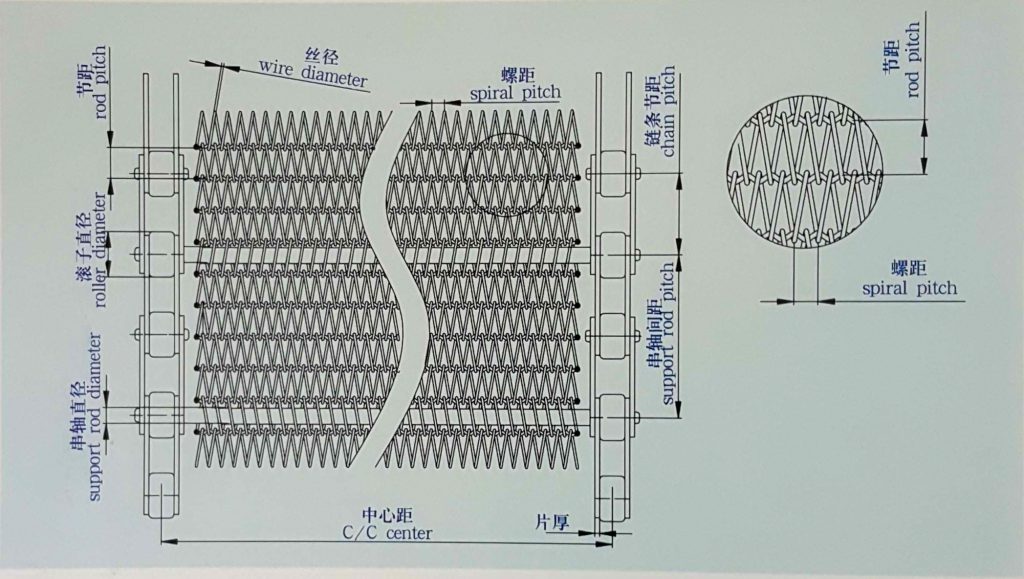

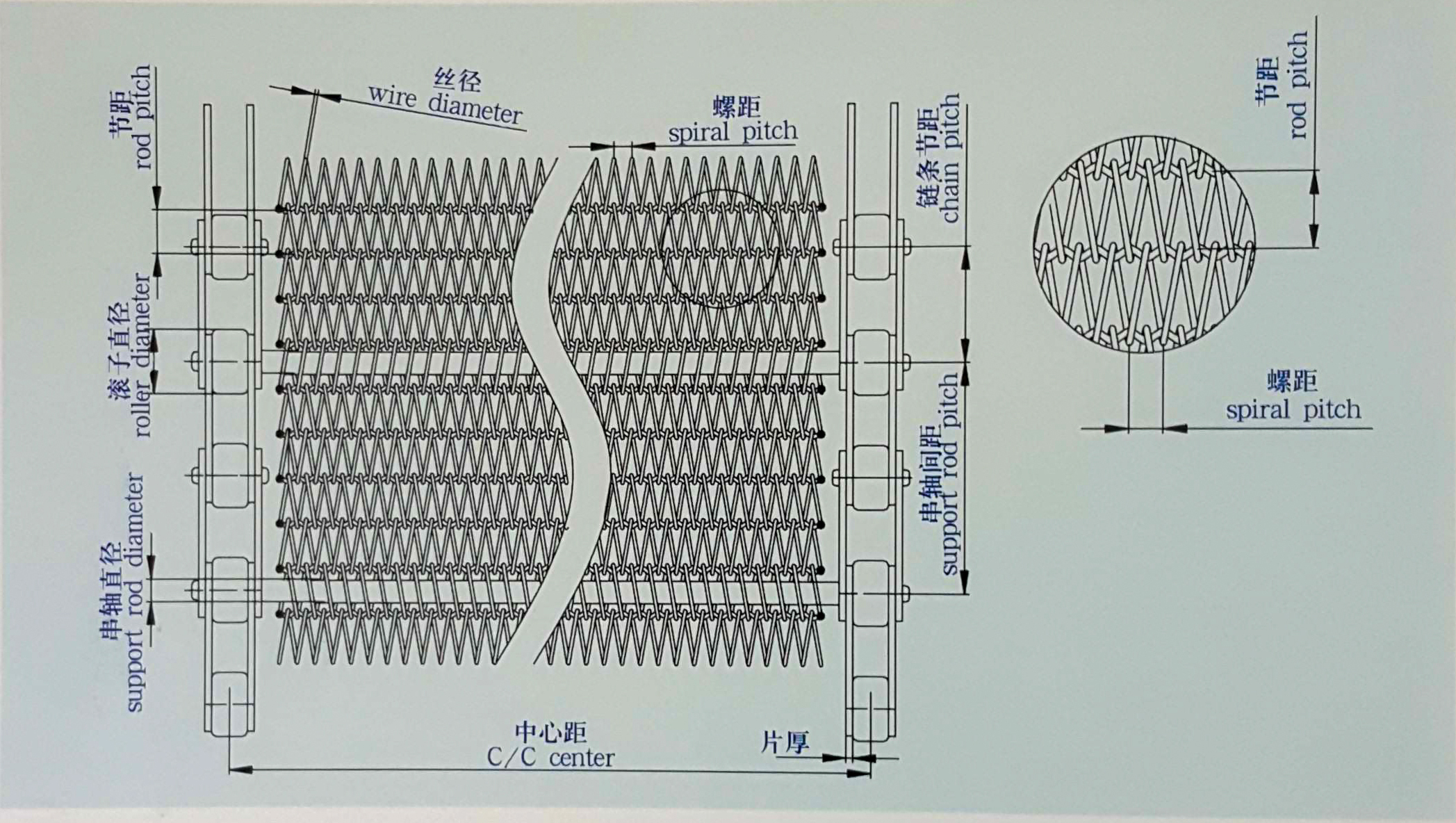

Chain driven belts are driven with a cross rod which connects the chain strands by either passing through or under the wire mesh fabric. The density of wire mesh fabric is choosen according to size of the product conveyed on the belt.

Chain driven belt characteristics: positive drive, smooth running, little pressure on wire mesh fabric, from minus 55 degrees to 1,150 degrees, side guard and flight available.

Material: carbon steel, galvansized steel, stainless steel, weathering steel, high temperature steel, usually used in baking oven, quenching tank, washing machine, freezer etc.

Our Chain Driven Belts
